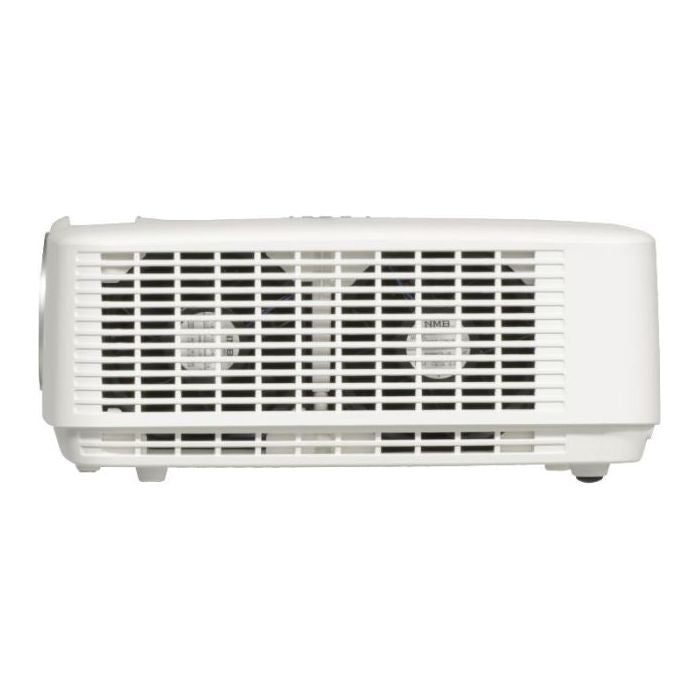

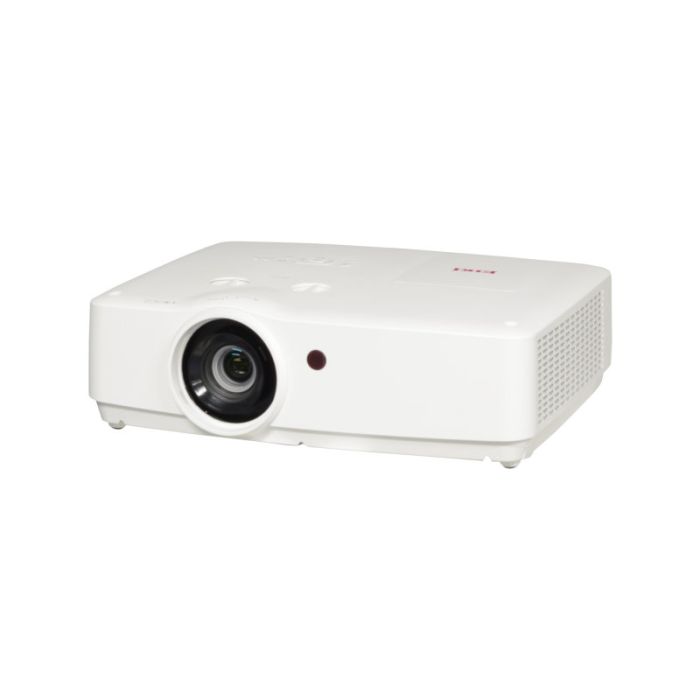

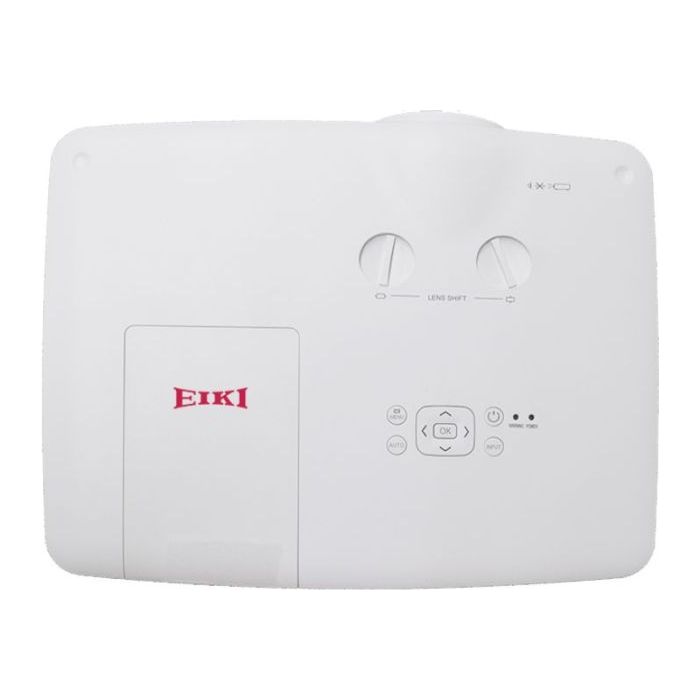

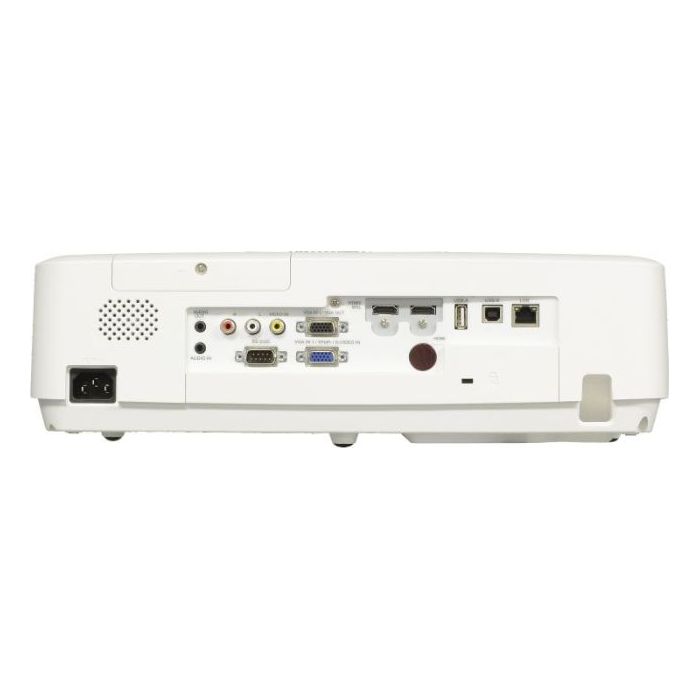

Eiki EK-309W WXGA 3LCD Projector: Elevate Your Golf Simulation Experience
Key Features:
-
Vivid and Bright Display: With 6,000 center lumens, the Eiki EK-309W shines in delivering bright and clear visuals, perfect for simulating the most realistic golf environments. Its high contrast ratio ensures vibrant colors and deep blacks, enhancing every detail of your golf course simulations.
-
Optimized Resolution for Golf Simulators: The native WXGA resolution is ideally suited for golf simulation, offering crisp and clear images at 720p. This resolution is perfect for capturing the intricacies of golf courses and providing a lifelike simulation experience.
-
Optimal Throw Ratio for Space Efficiency: With a throw ratio of 1.07 to 1.76, the Eiki EK-308U is designed for versatility in various room sizes. Fill a 10-foot-wide screen from just 10.7 feet away or adjust for a 6-foot-wide screen at a distance of 6.42 feet, ensuring you're never too close to the action.
Designed for Golf Enthusiasts:
-
Compact and Powerful: This high-brightness projector fits seamlessly into any golf simulator setup, with its range of inputs including HDMI, VGA, LAN, and RS-232C, accommodating all your multimedia requirements.
-
Effortless Maintenance: Maintenance is a breeze with easy access to the lamp and filter, ensuring your golf simulation experience is uninterrupted by technical difficulties.
-
Flexible Installation Options: Thanks to features like horizontal and vertical lens shift, keystone, corner, and curved correction, this projector adapts to various room sizes and shapes, making it perfect for any golf simulator setup.
-
Enhanced Connectivity: HDMI with MHL support allows for high-definition video projection, essential for detailed and immersive golf simulations. The projector supports a range of video standards, ensuring compatibility with various simulation software and hardware.
-
Integrated Audio Feature: The built-in 10-watt sound system enhances your simulation experience, adding realistic audio effects to your golf games.
Perfect for Golf Simulators:
-
Realistic Golfing Experience: Whether you're practicing your swing or playing a virtual round, the EK-309W's superior display quality makes every session more realistic and engaging.
-
Versatile for Different Spaces: Ideal for home setups, golf clubs, or commercial simulators, this projector fits a range of environments, from small rooms to larger spaces.
Elevate your golfing practice and entertainment with the Eiki EK-309W WXGA 3LCD Projector, where every shot is vividly brought to life.
Product Specifications
Brightness
6,000 Center Lumens
Contrast Ratio
10,000:1
Illumination Uniformity
80%
Resolution and Aspect Ratio
WXGA (1280 x 800), 16:10
Color Reproduction
10-bit (16.7 million colors)
Projection Lamp
300 Watts UHP
Estimated Lamp Life
4,000 / 3,000 hours (Eco/Normal)
Total Pixels3,072,000 (1280x800) x 3Imaging System
0.64 in (16 mm) inorganic LCD Panels x 3
Scanning Frequency
Auto: H Sync. 15–100 kHz, V Sync. 48–85 Hz
Pixel Clock
Up to 150 MHz
Lens
Attached – Manual Zoom and Focus
Lens Specs
F=1.6–1.9; f=0.602–0.970 in (15.31–24.64 mm)
Lens Ratios
Zoom Max:Min=1.6:1; Throw Ratio=1.07–1.75:1
Image Diagonal
30–300 in (76.2–762 cm)
Image Width
2.1–21.2 ft (0.64–6.4 m)
Throw Distance
2.23–37.50 ft (0.68–11.43 m)
Projector Elevation Adjustment (legs)
Up to 10°
Maximum Pitch
Up to 30° Up or Down
Vert/Horiz. Keystone Correction
Digital: V: ±30°(Auto), H: ±15° (Auto) Corner Keystone
Lens Shift
Vertical: ±45%, Horizontal: ±9% (manual)
Image Orientation
Normal, Reversed, Inverted
Local Control / Power Management
Full Function / Auto Shutdown
Remote Control
Wireless x 1
RS-232 Control
Dsub9 x 1
LAN Port
RJ45 x 1
Computer Input in Pixels
Up to 1600 x 1200 (4:3), 1920 x 1200 (16:10)
Analog 4x3 Inputs
UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Analog Wide Inputs
WUXGA, WSXGA+, WXGA
Digital 4x3 Inputs
UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Digital Wide Inputs
WUXGA, WSXGA+, WXGA
Video Formats
NTSC / PAL / SECAM
Video Input Analog
480i/p, 575i/p
Video Input Digital
480p, 575p, 720p, 1080i/p
Image Signal Resizing
Smart Scaling Technology
Image Signal Inputs: Computer 1
(Component/S-Video)
Dsub15 x 1
Computer 2
(switchable Monitor Out)
Dsub15 x 1
Digital Video
(w/ HDCP & MHL)
HDMI x 2
USB Type A - Memory Viewer
USB Type A x 1
USB Type B -
USB Display/Firmware
USB Type B x 1
Composite Video
RCA x 1
Audio Signal Inputs: Computer Audio
MiniStereo x 1
Video Audio
RCA x 2 (L/R)
Outputs: Computer Monitor
(Computer 2)
Dsub15 x 1
Audio Output
Variable, Stereo: MiniStereo x 1
Amplifier
Mono: 10 Watt
Speaker
1.4 in (3.7 cm) x 1 (Mono)
Fan Noise (@ 1m)
35.9 dB / 40.9 dB (Eco / Normal)
Cabinet Size (HxWxD) - excluding legs
5.0 x 15.5 x 12.5 in (12.8 x 39.5 x 31.8 cm)
Weight
9.9 lb (4.5 kg)
Packaged Cabinet Size (HxWxD)
9.0 x 17.5 x 19.5 in (23.0 x 44.0 x 49.5 cm)
Packaged Weight
13.2 lb (6 kg)
Operating Temperature
41–95°F (5–35°C)
Electrical Safety Compliance
IEC / UL / cUL
Electromagnetic Compatibility
FCC Class B, CE Mark
Power Requirements
100–240 V AC, 50/60 Hz
Power Consumption
0.5 W in Eco Standby mode, up to 410 W
Heat
Up to 1399 BTU/hr
Security Facilities
Kensington® Security Slot
UPC4571194679441User Maintenance
Clean Filter, Replace Lamp
Limited Warranty: to the original end use customer only Projector
3 years / 6000 hours (whichever occurs first)
Lamp
1 year ownership / 500 hours use (whichever occurs first)
Included Accessories
Quick Start Guide, 5.0 ft. (1.5 m) VGA Cable, 5.0 ft (1.5 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries)
Optional Accessories
Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable (S-Video to Dsub15), Ceiling Mount, Ceiling Post and Plate
